Plug In: Number Field with Decimal

It's a Number Field with Decimal Plugin In, which allow only Numeric Values and one DOT and Specified decimal value (2 or 4) in Number Field.

Plug-In Details:


DB versions: 12.1.0.1, 12.2.0.1, 18.4.0.0, 19.0.0.0.0, 19.2.0.0.19, 21.0.0.0.0, 21.1.0.0.0, 21.1.0.0.1

APEX versions: 20.1.0.00.13, 20.2.0.00.20,  21.1.0



Installation:

Go to GitHub and export plugin file "item_type_plugin_orclking_number_field.sql" from Source directory and import it into your application.

Steps to Achieve:

Step 1: Create a new blank page.

Step 2: Export plugin file "item_type_plugin_orclking_number_field.sql" from Source directory and import it into your application.

Navigation: Shared Components ==> Plug-ins ==> Import


Plugin will be listed under plug-ins bucket after successful installation.


Step 3: Create a region to the page. Region type should be Static Content.


Step 4: Create a item to the region. Change item type to "Number Field with Decimal [Plug-In]".


Step 5: In the Settings section you can choose some options. The image below shows all the available options.


  1. Element Text Position - Position of the field value (Left/Right)
  2. Min. Value - Specifies the minimum value allowed
  3. Max. Value - Specifies the maximum value allowed
  4. Digits - Specifies the decimal value allowed

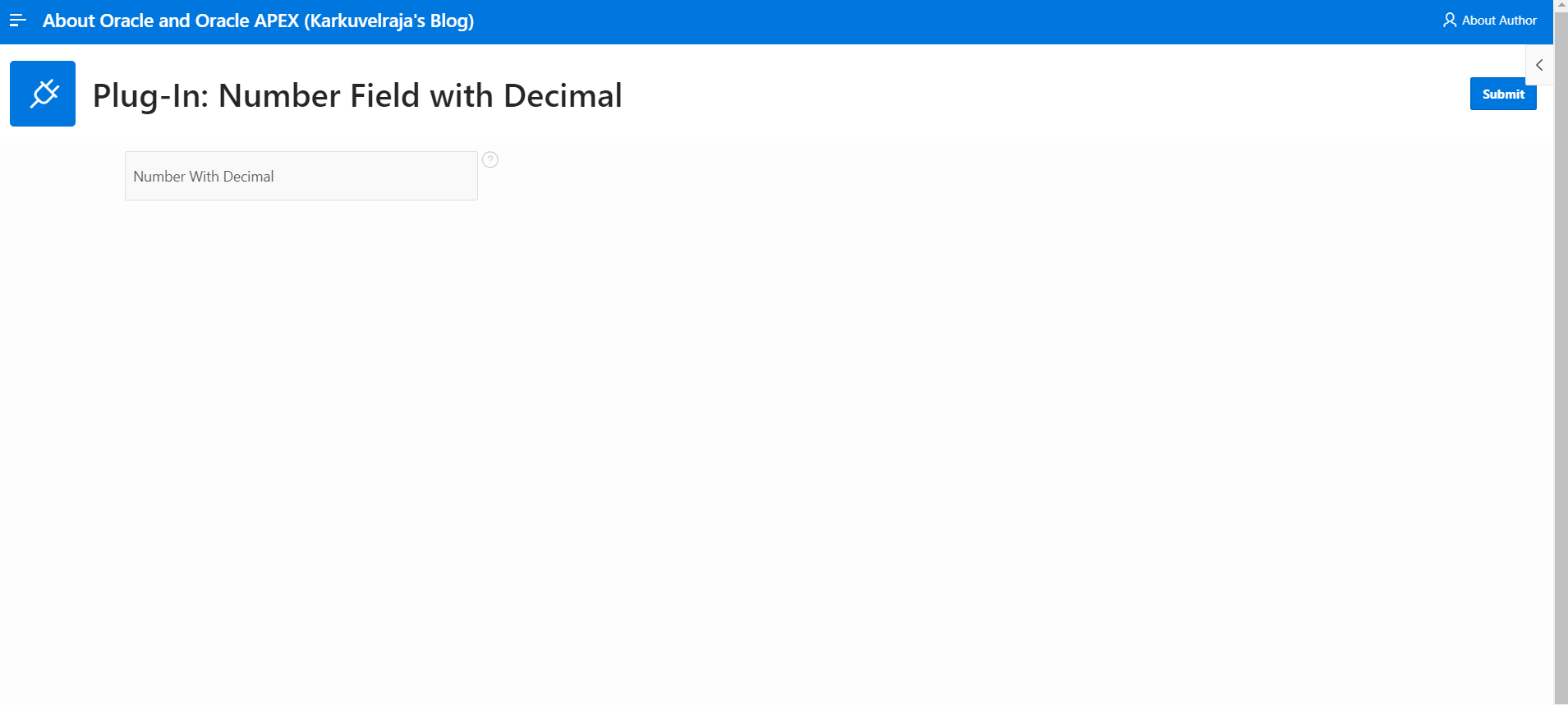

Output: Then you output would display like this,


The demo is here.

That's it.

Happy APEXing!!!...
