Convert CLOB to BLOB using Oracle PLSQL


Solution:

Step 1: Create plsql function clob_to_blob. It should return the BLOB.

 create or replace
FUNCTION clob_to_blob(
      p_clob_in IN CLOB)
    RETURN BLOB
  IS
    v_blob BLOB;
    v_offset         INTEGER;
    v_buffer_varchar VARCHAR2(32000);
    v_buffer_raw RAW(32000);
    v_buffer_size binary_integer := 32000;
  BEGIN
    IF p_clob_in IS NULL THEN
      RETURN NULL;
    END IF;
    dbms_lob.createtemporary(v_blob, TRUE);
    v_offset := 1;
    FOR i IN 1 .. ceil(dbms_lob.getlength(p_clob_in) / v_buffer_size)
    loop
      dbms_lob.READ(p_clob_in, v_buffer_size, v_offset, v_buffer_varchar);
      v_buffer_raw := utl_raw.cast_to_raw(v_buffer_varchar);
      dbms_lob.writeappend(v_blob, utl_raw.LENGTH(v_buffer_raw), v_buffer_raw);
      v_offset := v_offset + v_buffer_size;
    END loop;
    RETURN v_blob;

  END clob_to_blob;

Step 2: Call the function and test it.

 DECLARE
  l_xml CLOB;
  l_blob BLOB;
  l_clob_to_blob BLOB;
  l_file_name VARCHAR2(200);
  l_id        NUMBER;
BEGIN
 -- Generate XML

  SELECT dbms_xmlgen.getxml('select * from emp') xml
     INTO l_xml
    FROM dual;

   -- Print CLOB

   print_clob_to_output (l_xml);

   -- Convert CLOB to BLOB

   l_clob_to_blob := clob_to_blob (l_xml);

   -- Set File Name

   l_file_name    := 'Employee Management Report (' ||to_char(SYSDATE,'DDMMYYYYHHMISS')      ||')' ||'.xml';

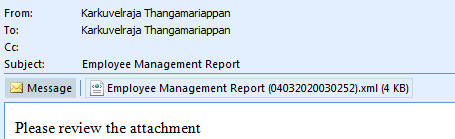

   -- Send mail - Converted BLOB as attachment

   l_id := apex_mail.send( p_to => 'orclking@yyy.com',
                          p_from => 'xxx@yyyy.com',
                          p_subj => 'Employee Management Report',
                          p_body => 'Please review the attachment.',
                          p_body_html => 'Please review the attachment'
                        );

  apex_mail.add_attachment ( p_mail_id => l_id,
                             p_attachment => l_clob_to_blob,
                             p_filename => l_file_name,
                             p_mime_type => 'xml'
                           );
END;
