Plug In: Heat Map Report


It's a Heat Map (or heatmap) Report Plug-In. It's a representation of data where values are depicted by color. It makes the visualize of complex data easy and understand it at a glance.

This has been inspired by apex.oracle.com. Special thanks to Oracle APEX Product Development team, who brought this solution.

Plug-In Details:


DB versions: 12.1.0.1, 12.2.0.1, 18.4.0.0, 19.0.0.0.0, 19.2.0.0.19, 21.0.0.0.0, 21.1.0.0.0, 21.1.0.0.1

APEX versions: 20.1.0.00.13, 20.2.0.00.20,  21.1.0


Installation:

Go to GitHub and export plugin file "region_type_plugin_orclking_heatmap_report.sql" from Source directory and import it into your application.

Steps to Achieve:

Step 1: Export a script "Script to Populate Sample Data.sql" from directory and compile it in your schema.

Step 2: Create a new blank page.

Step 3: Export plugin file "region_type_plugin_orclking_heatmap_report.sql" from GitHub source directory and import it into your application.

Navigation: Shared Components ==> Plug-ins ==> Import


Plugin will be listed under plug-ins bucket after successful installation.


Step 4: Create a region to the page. Change region type to Heat Map Report [Plug-In].


Step 5: Construct Oracle SQL query and copy and paste it in region SQL Query section.


Query Template:

SELECT 1 heat_map_id, -- Primary key of the Table
       'Product A' heatmap_tootltip,
        apex_string.get_initials('Product A',6) heatmap_label, -- Initials
        apex_util.prepare_url ('f?p='||:app_id||':1:'||:app_session
||':::1:P1_ID:'||1) heatmap_link,
        1000 heatmap_value -- Note: It must be a number field
  FROM dual
 WHERE 1 = 1;

Sample Query to Render a Report:

Note: Populate sample data by exporting a script "Script to Populate Sample Data.sql" from GitHub directory and compile it in your schema.

WITH final_data AS
(SELECT dt.dept_id,
        count(*) total_tasks
  FROM dept_tasks dt
 GROUP BY dt.dept_id
 )
   SELECT dept.dept_id heat_map_id, -- Primary key of the Table
          dept.dept_name heatmap_tootltip,
          apex_string.get_initials(dept.dept_code,6) heatmap_label, -- Initials
          apex_util.prepare_url ('f?p='||:app_id||':1:'
                                 ||:app_session||':::1:P1_ID:'||1) heatmap_link,
          fd.total_tasks heatmap_value -- Note: It must be a number field
     FROM department_master dept,
          final_data fd
    WHERE 1 = 1
      AND dept.dept_id = fd.dept_id
    ORDER BY fd.total_tasks DESC;

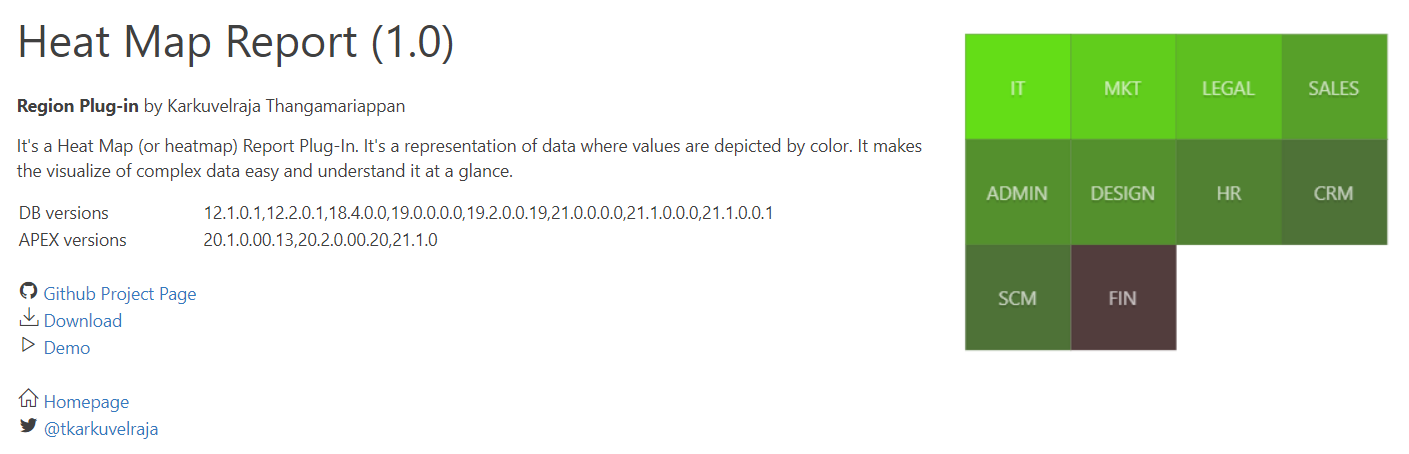

Output: Then you output would display like this,


The demo is here.

That's it.

Happy APEXing!!!...
