A carousel/slideshow is used to cycle through elements. A plugin to display images as a responsive slideshow. Special thanks to Farzad Soltani for his Bootstrap Image Carousel Plugin, that will add a bootstrap carousel with three images (static), but this plugin (Bootstrap Carousel Extension) will render a bootstrap carousel region based on query output (dynamic) and changing the slides can be controlled via left and right arrow keys.
Plug-In Details:
DB versions: 12.1.0.1, 12.2.0.1, 18.4.0.0, 19.0.0.0.0, 19.2.0.0.19, 21.0.0.0.0, 21.1.0.0.0, 21.1.0.0.1
APEX versions: 20.1.0.00.13, 20.2.0.00.20, 21.1.0
Installation:
Go to GitHub and export plugin file "region_type_plugin_orclking_bootstrap_carousel_extension.sql" from Source directory and import it into your application.
Steps to Achieve:
Step 1: Export a script "Script to Populate Sample Data.sql" from directory and compile it in your schema.
Step 2: Create a new blank page.
Step 3: Export plugin file "region_type_plugin_orclking_bootstrap_carousel_extension.sql" from GitHub source directory and import it into your application.
Navigation: Shared Components ==> Plug-ins ==> Import
Plugin will be listed under plug-ins bucket after successful installation.
Step 4: Create a region to the page. Change region type to Bootstrap Carousel Extension [Plug-In].
Step 5: Construct Oracle SQL query and copy and paste it in region SQL Query section.
Query Template:
SELECT 1 slide_key,
'https://image.com/01' slide_url
FROM dual
WHERE 1 = 1;
Sample Query to Render a Report:
Note: Populate sample data by exporting a script "Script to Populate Sample Data.sql" from GitHub directory and compile it in your schema.
SELECT document_id slide_key,
file_url slide_url
FROM fxgn_documents
ORDER BY sequence_no ASC;
Step 6: Fill required attributes.

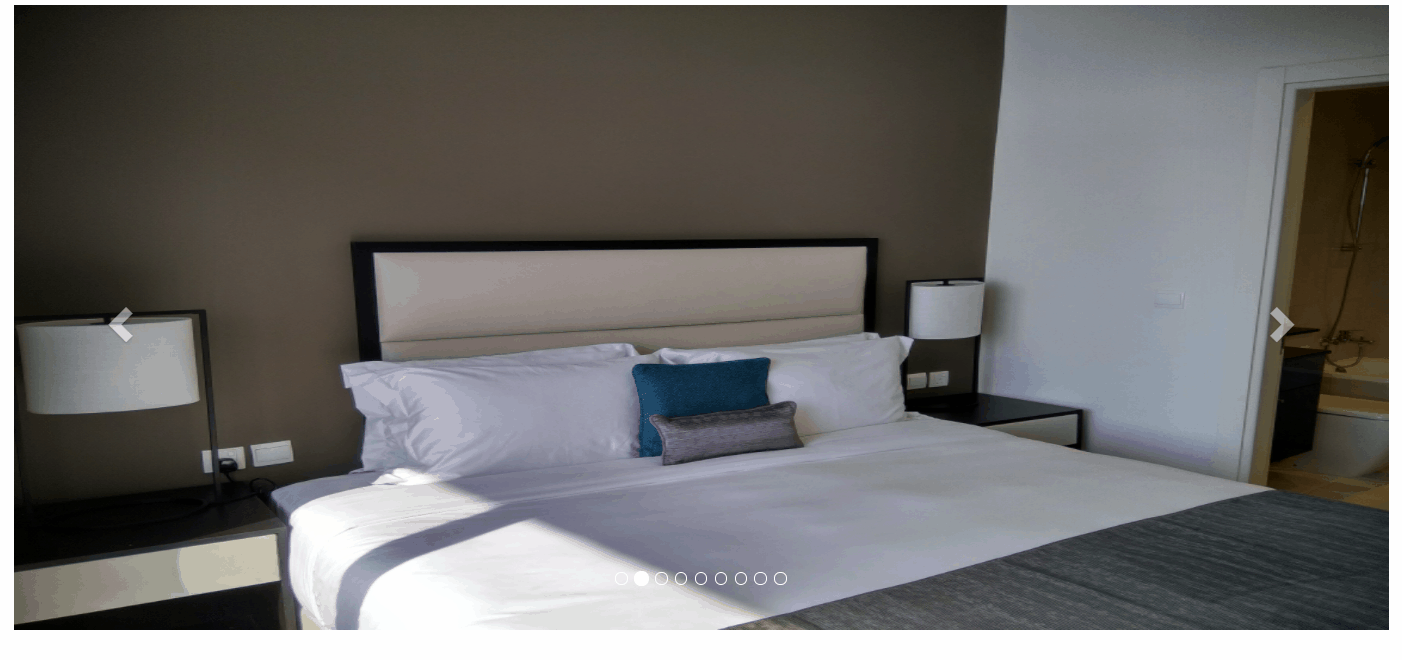

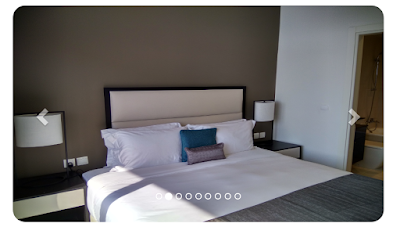

Output: Then you output would display like this,
The demo is here.
That's it.
Happy APEXing!!!...
