Integrating Oracle APEX with Google Maps | Spot the Location & Get the Address by Providing Latitude & Longitude

Integrating Oracle APEX with Google Maps | Spot the location & Get the Address by Providing Latitude & Longitude,
I have followed below steps.

Step 1: Google API Key must be obtained. Get Google API Key.

Step 2: Create static region with three page items p1_latitude, p1_longitude and p1_address and region button (To locate the location and get the address).

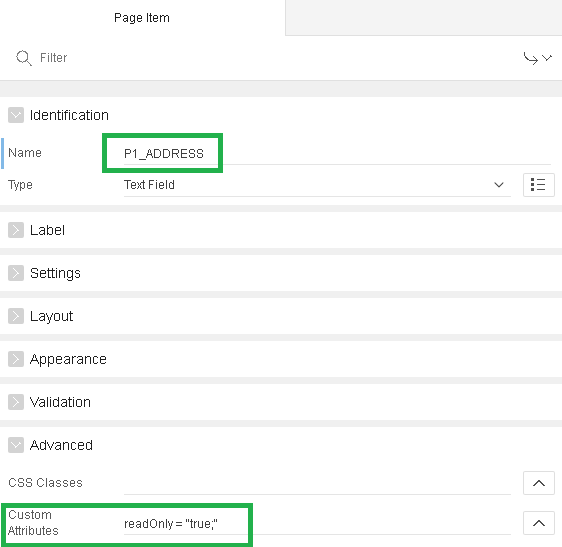

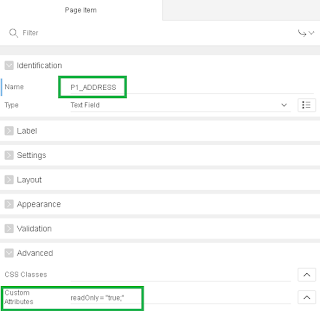

Note: Button action should be "submit page". Page item type should be "text/number". Make page item p1_address read-only as below.



Step 3: Create static region with static ID: googlemap.

Step 4: Add custom CSS in Inline CSS.

 #googlemap {
     height: 600px !important;

  }

Note: Normal Page - Height: 600px; | Modal Dialog - Height: 400px;.

Step 5: Add below js in Page HTML Header.

< script >
    var map;

function initMap() {
    map = new google.maps.Map(document.getElementById('googlemap'), {
        center: {
            lat: -34.397,
            lng: 150.644
        },
        zoom: 15
    });
    var geocoder = new google.maps.Geocoder();
    var infowindow = new google.maps.InfoWindow;
    geocodeLatLng(geocoder, map, infowindow);
}

function geocodeLatLng(geocoder, map, infowindow) {
    var lat = document.getElementById('P1_LATITUDE').value;
    var lng = document.getElementById('P1_LONGITUDE').value;
    var latlng = {
        lat: parseFloat(lat),
        lng: parseFloat(lng)
    };
    geocoder.geocode({
        'location': latlng
    }, function(results, status) {
        if (status === 'OK') {
            if (results[0]) {
                map.setZoom(11);
                var marker = new google.maps.Marker({
                    position: latlng,
                    map: map
                });
                infowindow.setContent(results[0].formatted_address);
                $('#P1_ADDRESS').val(results[0].formatted_address);
                infowindow.open(map, marker);
            } else {
                window.alert('No results found');
            }
        } else {
            window.alert('Geocode was not successful for the following reason: ' + status);
        }
    });
} < /script>

< script src = "https://maps.googleapis.com/maps/api/js?key=MY_GOOGLE_API_KEY&libraries=places&callback=initMap"
async defer > < /script>

Note:
p1_latitude - Run time parameter, to get latitude.
p1_longitude - Run time parameter, to get longitude.
p1_address - On which we are populating the address.
googlemap - Static ID for that particular region or division.

In the end of code, you can find link,

 <script src="https://maps.googleapis.com/maps/api/js?key=MY_GOOGLE_MAP_API_KEY&libraries=places&callback=initMap" async defer></script>

You must replace MY_GOOGLE_MAP_API_KEY with your valid Google MAP API Key.

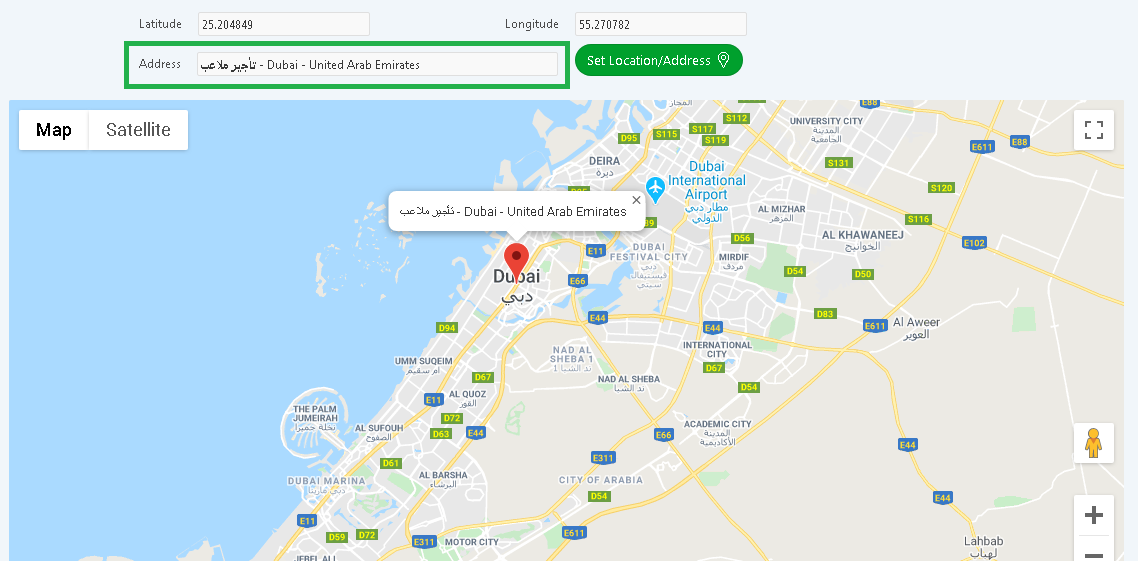

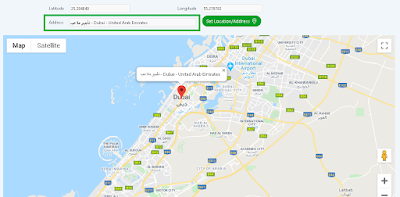

Output: The moment you click on button "Set Location/Address", you will have an output as like below.

That's it. Happy APExing!!!...

Faced Issues: I would like to share all the issues which i faced when i was integrating Oracle APEX with Google Maps.
