Logo Cards in Oracle APEX


Fig 1: Logo Cards

Here I am giving an elegant way for displaying logos (images) as cards using Oracle APEX classical report. This has been inspired by apex.oracle.com

Cards: A card is any type of custom element used for easy showing of contents that comprises various types of objects like title, image, button, etc. These cards could be anything like CSS material based cards, blog-based cards, business cards, informative cards or analytical cards and etc.

Step 1: Create list of below required objects by using below script.

             1. Table - Store the data
             2. Sequence - Generate the primary key value
             3. Trigger - Fire the action, when DML operations happening on the table

Table: (fxgn_customer_logos)

CREATE TABLE fxgn_customer_logos
  (
    logo_id       NUMBER,
    customer_name VARCHAR2(240 BYTE),
    description   VARCHAR2(4000 BYTE),
    image_blob BLOB,
    mime_type  VARCHAR2(240 BYTE),
    sort_order NUMBER,
    updated_on TIMESTAMP (6),
    updated_by VARCHAR2(240 BYTE)
  );

Sequence: (fxgn_customer_logos_s)

CREATE SEQUENCE fxgn_customer_logos_s START WITH 1 INCREMENT BY 1;

Trigger: (fxgn_customer_logos_biu)

CREATE OR REPLACE TRIGGER fxgn_customer_logos_biu
  BEFORE INSERT OR UPDATE ON fxgn_customer_logos
     FOR EACH ROW
   BEGIN
     IF inserting THEN
        IF (:NEW.logo_id IS NULL) THEN
            SELECT fxgn_customer_logos_s.nextval
              INTO :NEW.logo_id
              FROM dual;
         END IF;
     END IF;

    IF (inserting OR updating) THEN
      :NEW.updated_on := LOCALTIMESTAMP;
      :NEW.updated_by := nvl(wwv_flow.g_user,USER);
    END IF;
END;
/

ALTER TRIGGER fxgn_customer_logos_biu ENABLE;

Step 2: Build a forms and report to  populate the values into table (fxgn_customer_logos).

Navigation: Oracle APEX Home ==> App Builder ==> Select Application  ==> Run Application ==> Create Page >

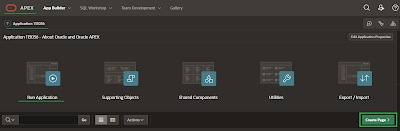

Screen 1: Create Page

I) Create Page: Below popup comes up, when the button Create Page > clicked. Choose an option "Form", which is listed under page type component.

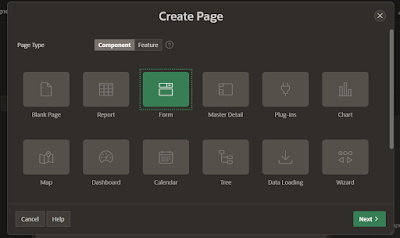

Screen 2: Create Page

And It will navigate to Screen 3, where you should select an option "Report with Form"

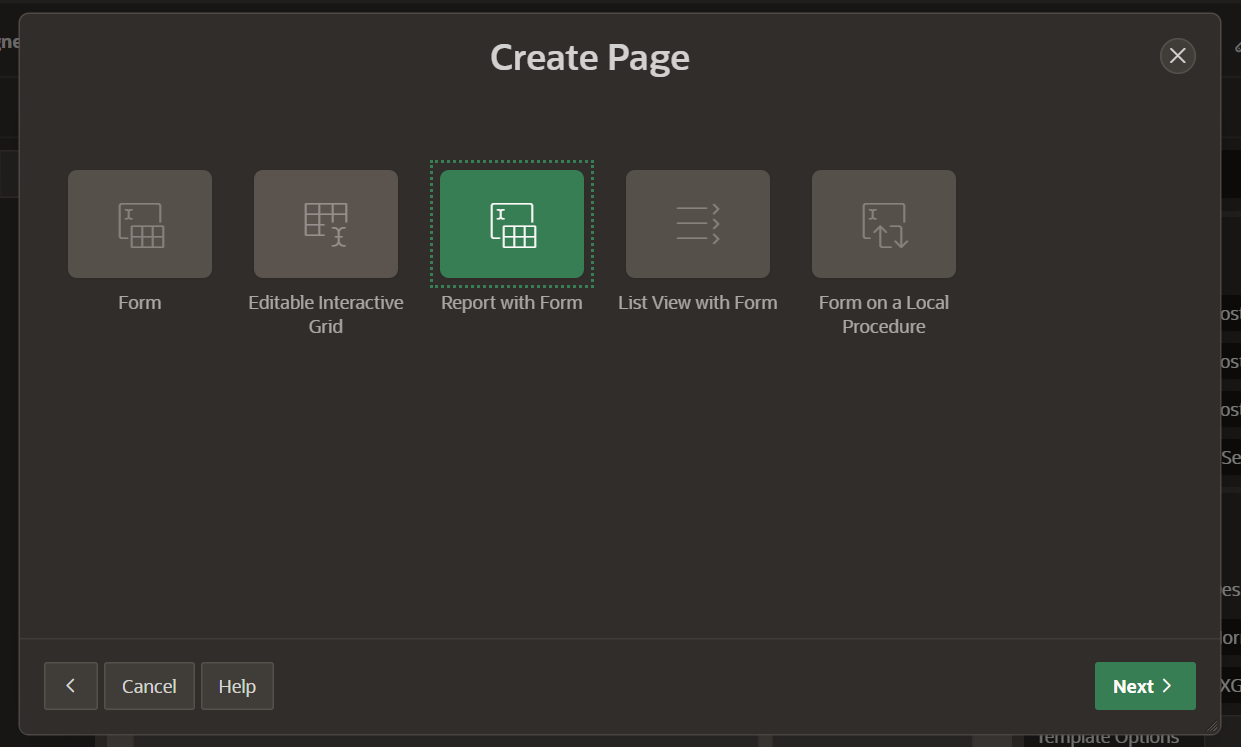

Screen 3: Create Page

And It will navigate to Screen 4 (Page Attributes)

2) Page Attributes: Fill the required page attributes. (As per your requirement)

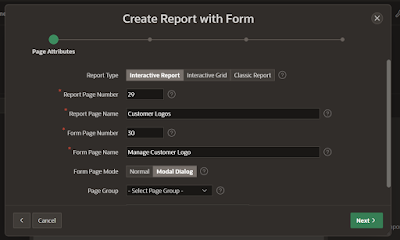

Screen 4: Page Attributes

Note: Page number can be changed based on the requirement. Mine report and form page was 29 & 30 respectively. You will need to update reference to "P29" & "P30" with your page number if it's different.

And click on Next >, it will navigate to below Screen 5 (Navigation Menu),

3) Navigation Menu: Set the navigation preference. (As per your requirement)

Screen 5: Navigation Preference

And click on Next >, it will navigate to below Screen 6 (Data Source),

4) Data Source: Setup the data source (Select a table "fxgn_customer_logos") and select columns to be shown in the report.

Screen 6: Data Source

Screen 7: Columns to be shown in the report

And click on Next >, it will navigate to below Screen 6 (Create Form - Columns and Primary Key,

5) Create Form - Columns and Primary Key:
Select columns to be displayed in the form and Setup the primary key type & column.

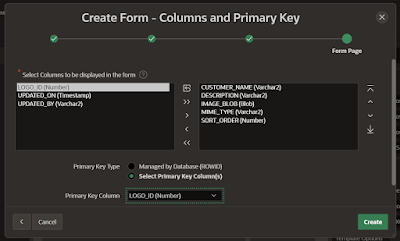

Screen 8: Columns to be shown in the form

And click on Create, it will create a report and forms for the table "fxgn_customer_logos"
(Ref. Fig 2 & 3)

Fig 2: Report Page

Fig 3: Form Page

Step 3:
Populate the customer details using the form which we created.

Fig 4: Data Loaded

Step 4: Create a new blank page.

Note: Mine was page 27. You will need to update reference to "P27" with your page number if it's different.

Step 5: Create a "Classical Report" region to the page using below script.

SELECT apex_util.prepare_url( '#' ) card_link,
       fcl.customer_name card_title,
      CASE WHEN dbms_lob.getlength(image_blob) = 0 THEN
           '<span class="no-image">'||apex_escape.html(fcl.customer_name)||'</span>'
      ELSE '<img src="'||apex_util.get_blob_file_src('P30_IMAGE_BLOB',logo_id)
                       ||'"></img>'
       END card_text,
      '' card_subtext,
      NULL card_initials,
      fcl.logo_id ID
FROM fxgn_customer_logos fcl
ORDER BY sort_order ASC;

Step 6: Go to column attribute of the column CARD_TEXT and set Escape special characters = No.

Fig 5: Escape Special Characters

Step 7: Go to region appearance and change the template appearance to have a better look (if required).

Fig 6: Region Appearance

      1) Template: Standard

      2) Template Options:

              I) Common:

                           i) General => User Template Defaults, Remove Body Padding
                          ii) Body Height => Auto - Default
                         iii) Header => Hidden
                         iv) Accent => Default
                          v) Style => Remove UI Declaration

             II) Advanced:

                           i) Body Overflow => Hide
                          ii) Item Padding => Slim Padding

Step 8: Go to report attributes and change the template options to bring card view.

Fig 7: Report Template Appearance

            1) Template: Cards

            2) Template Options:

i) Common:

         i) General => User Template Defaults
        ii) Style => Featured
       iii) Icons => No Icons
       iv) Layout => 5 Columns
        v) Body Text => Auto
       vi) Icon Shape => Circle
      vii) Animation => Raise Card

            3) CSS Classes: logo_cards

Step 9: Change the style of the card by adding below piece of CSS to the page in inline CSS Section.


Navigation: Go to Page ==> CSS ==> Inline


.logo-cards .t-Card-icon,
.logo-cards .t-Card-titleWrap,
.logo-cards .t-Card-info {
    display: none !important
}

.logo-cards .t-Card .t-Card-body {
    padding: 0;
    border: none;
    margin: 0
}

.logo-cards .t-Card .t-Card-desc {
    position: relative;
}

.logo-cards .t-Card img {
    width: 100%;
    vertical-align: middle;
    max-height: 100%;
}

span.no-image {
    display: block;
    text-align: center;
    color: #909090;
    font-weight: 200;
    white-space: nowrap;
    padding: 0 12px;
}

That's it.

Output: Then your output would then display like this,

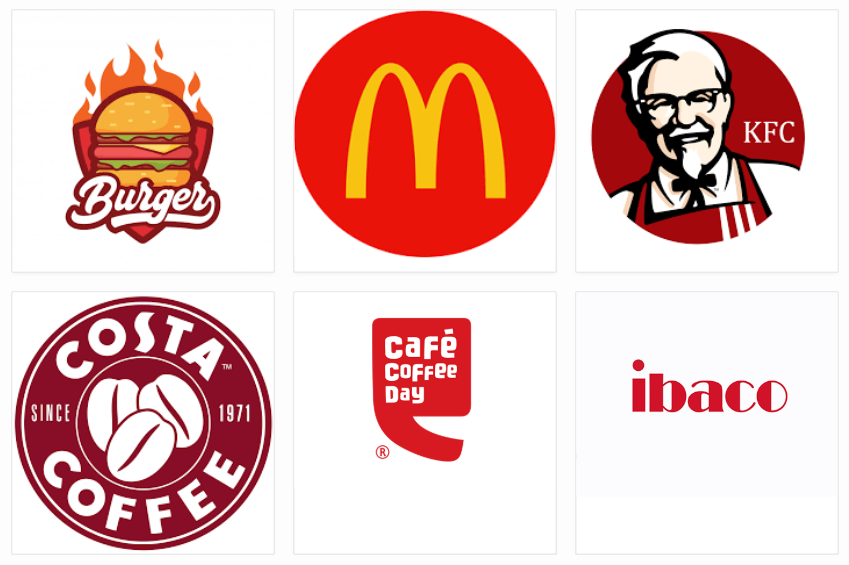

Fig 8: Logo Cards

The demo is here.

Happy APEXing!!!...

References:

Comments

  1. It was nice of you to include all the steps for this and the results look good (especially if you like logos for fast food :-) ). And as someone who still fumbles a lot getting my CSS right, I really appreciated the CSS you provided.

    A couple questions, if I may?

    * I'm curious about the benefit of specifying the the Static ID ("logo_region") in Step 6, since I don't see any other references to it.
    * Also, in Step 7, the screenshot shows "escape special characters" is set to No, but the instructions say "Yes". I would think you want No, so the span displays?

    Thanks!

    ReplyDelete
    Replies
    1. This comment has been removed by the author.

      Delete
    2. Thanks for pointing out the issues,

      * Yes, I didn't use the static Id anywhere (I forgot to remove it)
      * Yes, Escape "Especial Characters" should be set to No.

      I have changed it. Thank you Stew.

      Delete
    3. I'm happy to have helped. If you hadn't pointed out the static ID, I wouldn't have looked for where it was/wasn't used. Thanks for sharing these great ideas.
